Binding Technology
Arbor designed a binding collection to enhance performance, utility, and rider-friendly features. Engineered to seamlessly integrate with The System technologies, these bindings are not only optimized for Arbor snowboards—but developed to improve the control of any snowboard. The same craftsmanship ethos that defines the Arbor snowboard line is further reflected throughout the binding collection.
Arbor Bindings Feature The System X Design
-
System X Baseplate
Transfers rider input out to four heel-and-toe convergence zones, improving communication and control of your edge. Our System X baseplate limits the binding’s direct contact with the board to the disk and convergence zones, creating a more natural flex underfoot, reducing binding flat spots, and eliminating rigid board contact.
-
System X Outsole
The outsole is a dampening interface made from a special TPE Rubber. It integrates with the System X design, sitting between the binding and a rider’s snowboard. The outsole diffuses high–frequency chatter while providing rebound and cushion for high–impact landings.
• 65A Durometer Outsole - Cypress
• 50A Durometer Outsole - Hemlock and Sequoia

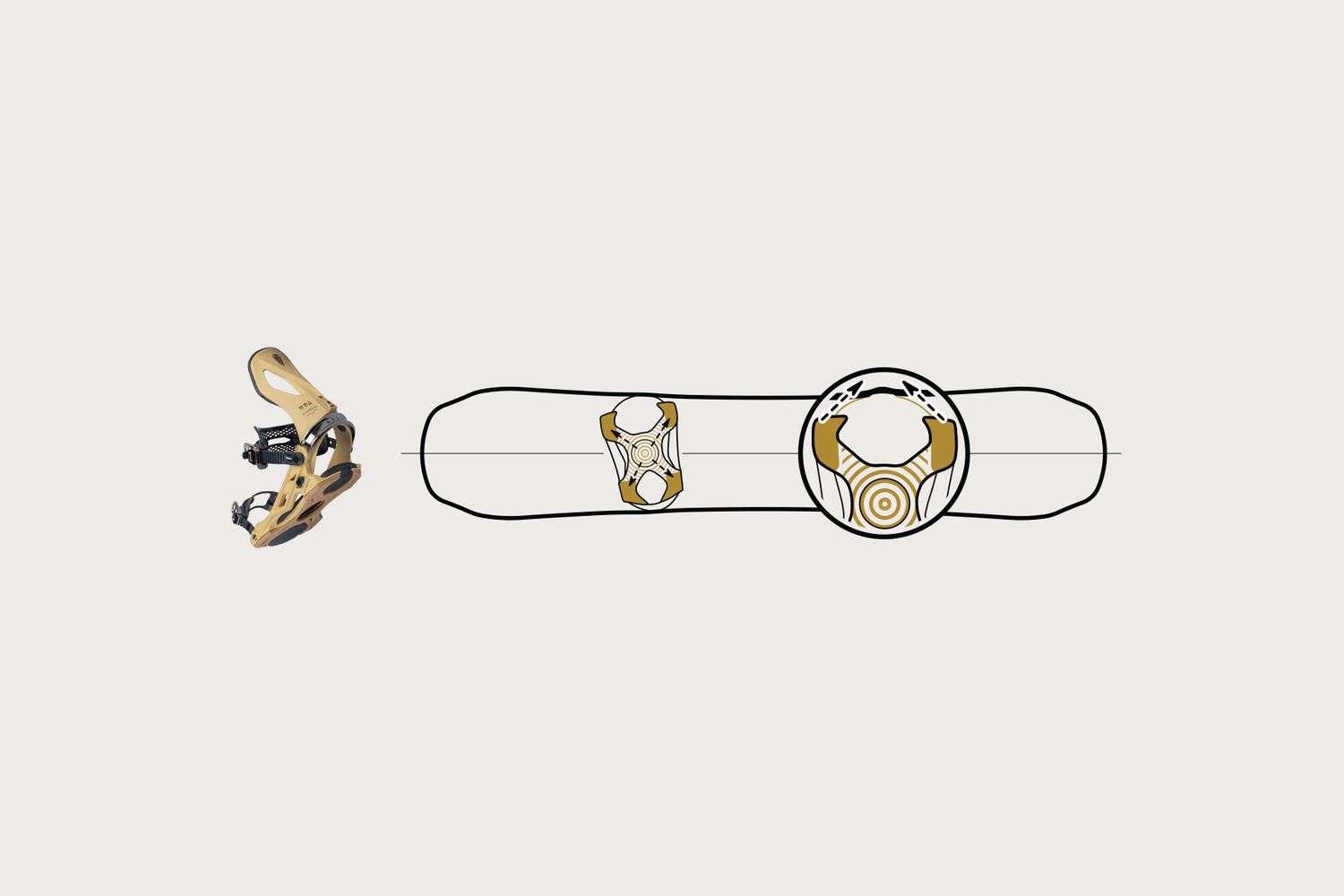

System X Baseplate & Outsole Diagram
![Arbor Collective](http://www.arborcollective.co.uk/cdn/shop/files/binding-tech-biostrap_2023-11.jpg?v=1700005073&width=1500)

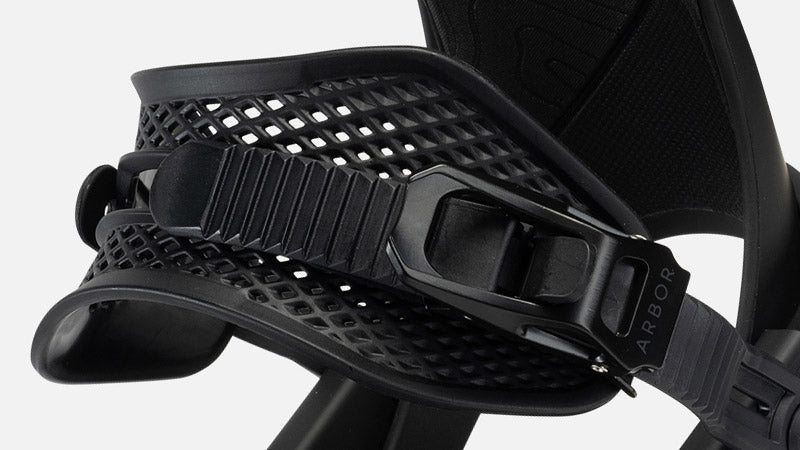

BioStrap
Arbor’s all-new, plant-based BioStrap takes the place of harmful petrol-based plastics focusing on heel lock and secure fit, with a comfortable curvature and low profile, single-injection ankle and toe straps. Stronger, lighter, more sustainable, and the first of its kind.
Key Features
-

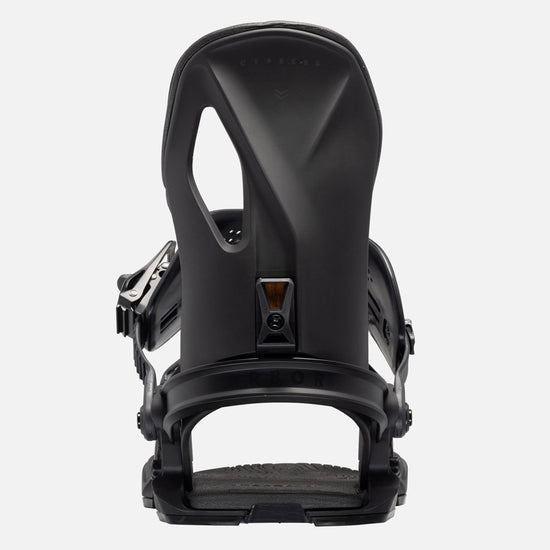

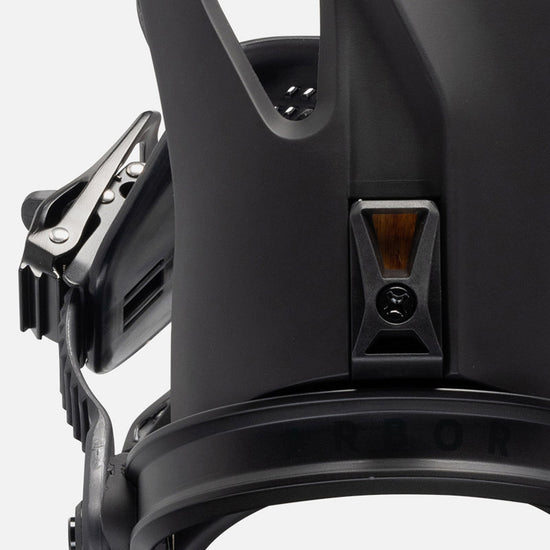

Asymmetrical Highbacks
All Arbor bindings feature mounted
asymmetrical highbacks with 5º pre-rotation
for ergonomic feel and freedom of movement.

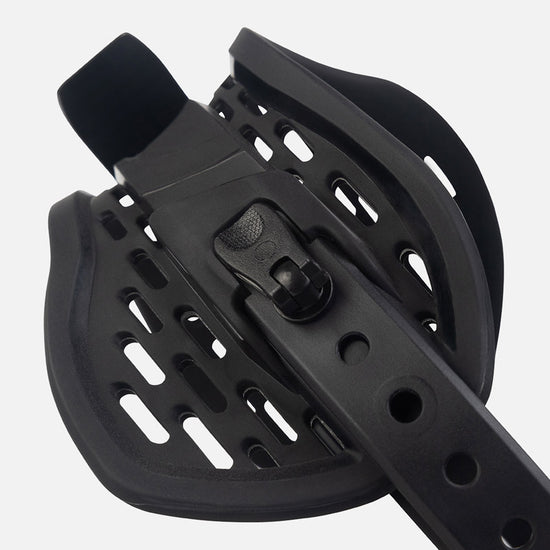

Tool-less Ankle & Toe Strap Adjuster
No tools needed for strap length
adjustments. Flip, twist, and go.

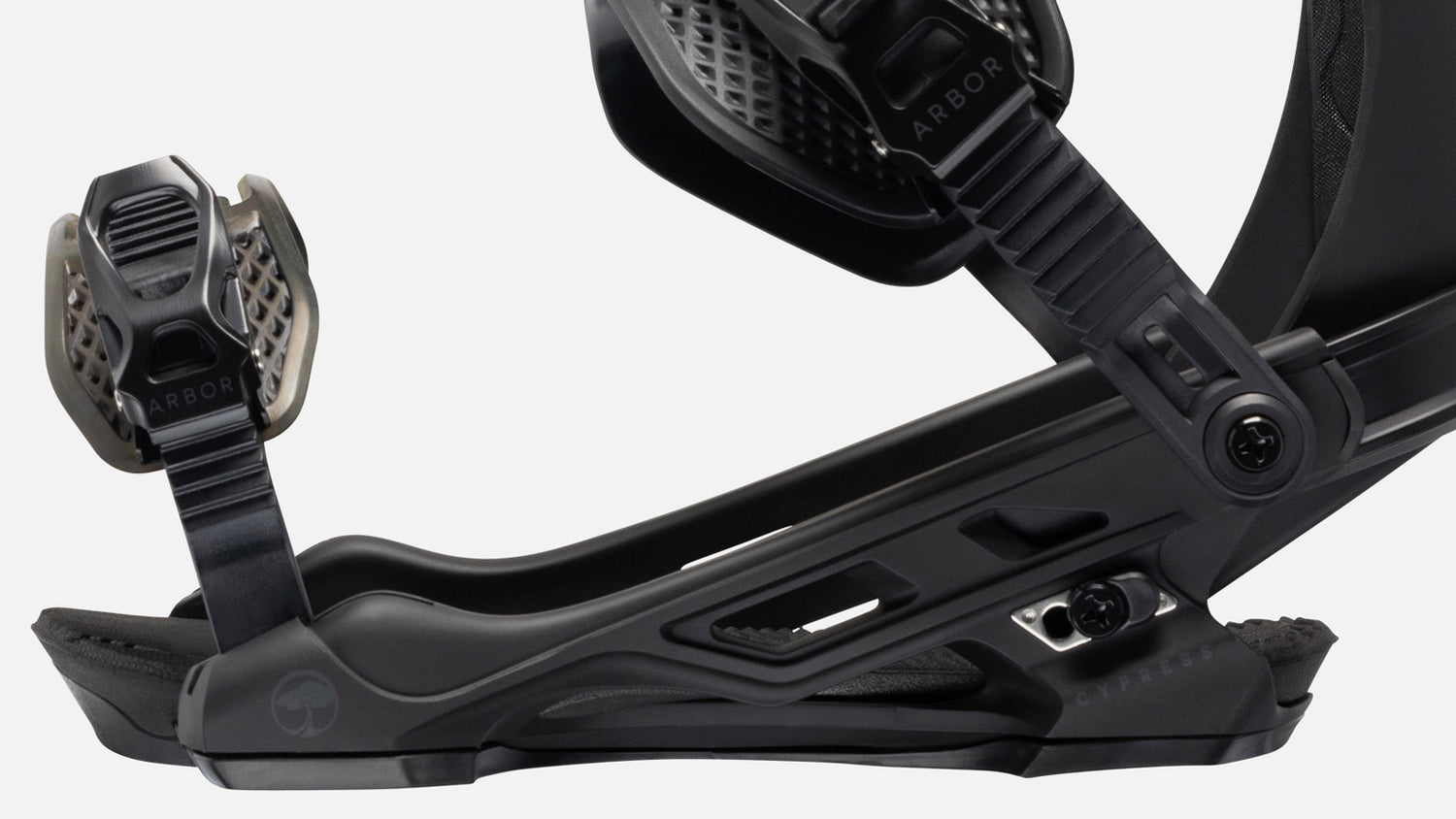

Bow-Strap Adjuster
Our proprietary pre-curved “Bow-Strap”
adjusters & ladders actively swing away from
the binding to help open the foot bed, making
binding entry easy and more hands free.
Lifetime Warranty on Baseplate
-
2 XD Footbeds
CYPRESS
The Cypress features a dual-density footbed design. The Top is made with a firmer material for added durability and improved board feel. On the bottom, we add impact absorbent heel and ball area pods for big landings and harder snow. The Footbed has a 1.5° built-in cant for a more ergonomically aligned ride.
Fiberglass Reinforcing
CYPRESS, SEQUOIA, HEMLOCK
The Hemlock, and Sequoia, feature a 15% glass content for a softer, more forgiving ride; while the Cypress have 30% glass content for added strength and stability.
Adjustable EVA Footbed
SPRUCE, ACACIA, SAPLING
Full length EVA footbed provides a lightweight dampening layer. Adjustable toe-ramp to fit any boot.
Fiberglass Reinforced Buckles and Levers
SPRUCE, ACACIA, SAPLING
Fiberglass reinforced buckles and levers offer added strength and durability.
Adjustable Aluminum Heelcups
CYPRESS, SEQUOIA, HEMLOCK
Made from durable extruded aluminum. Offers amazing adjustability. Use the heelcup to center your foot and the disk to fine-tune your stance width. Lifetime warranty. Available on the Cypress, Hemlock, and Sequoia.
4x4 Universal Disk
SEQUOIA, ACACIA, SPRUCE, SAPLING
The tried and true, traditional binding disk.
Lightweight Single Mold Baseplate
SPRUCE, ACACIA, SAPLING
Simple, tough, and durable.
2x4 Mini Disk
CYPRESS, HEMLOCK
Mini Disc’s require less surface area and along with the System X help provide a more organic snowboard flex underfoot. Channel compatible.
UltraGrip Convertible Toe Strap
HEMLOCK
The Hemlock features a flexible, comfortable, and secure fit on or over the toe of any boot.
